Description

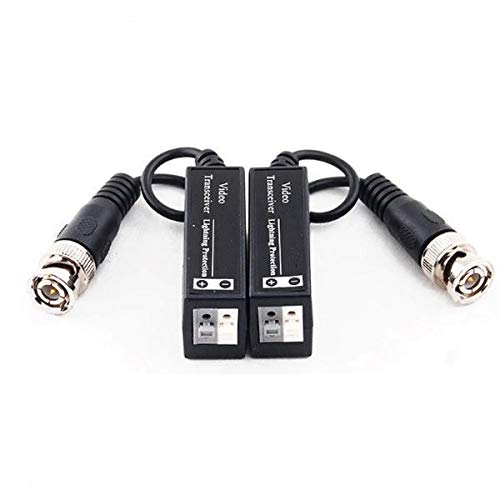

SALES PACKAGING : 2 PCS SET Video Balun Transceiver

TITLE : 1080P Passive Video Balun Transmitter and Transceiver with Cable CCTV for TVI/CVI/TVI/AHD/960H DVR Camera CCTV System, No Power Required (Black) – Pack of 2 2Pcs CCTV Passive Video Balun Transmitter & Transceiver with Cable for 1080P TVI/CVI/TVI/AHD/960H DVR Camera CCTV System, No Power Required 1 Pair BNC Video Balun Coaxial Solderless Over UTP Cat5 Cat5e Cat6 Cable Upto 300 Meters – Transceiver for CCTV Camera and DVR Wire Connector

CATEGORY : BULLET CAMERAS | NETWORK INTERFACE CARDS | DIGITAL CAMERA KIT

MATERIAL : PLASTIC

BULLET POINTS :

• Improve the picture definition when connected to DVR or Quad, and reduce noise
• Push-terminal 1 channel passive hd transceiver, male bnc allows connection directly to tvi/cvi/ahd/cvbs DVR or CCTV camera system transmit video via utp cat5 cable, 10-20% wire, no need additional power supply adapter
• Hd 720p/1080p color video transmission distance: ahd/hd/cvi/cvbs – max 300m/1000ft, tvi ¨c 200m/656ft full-motion CCTV video at distances up to 1312ft(400m)
• Built in TVS for surge protection, super interface rejection / transient protection / lightning protection / anti-static protection
• Casing Material: ABS Plastic; Working Temperature: -10 ~55 degree

DESCRIPTION :

•
• CCTV BNC Video Balun: compatible with Traditional analog CVBS/AHD/TVI/CVI Signal
• Support all video devices: such as camera, monitor, DVR card and recorder, etc
• Easy installation: transmit video system via standard UTP cable CAT5 system instead of traditional coaxial cable
• Utilize existing wiring: Already have structured cabling systems
• Simply connect a balun at each end of the cable, run to transmit your signal Better EMI and RFI interference rejection than coaxial cable Video transmission signal: 960H/720P/1080P Video transmission distance: 300m/1000ft for CVI/AHD/960H, 200m/650ft for TVI Male BNC connector allows connection directly to the camera or DVR No power required
• Specifications: Transmission signal: 1 channel Coaxial video connector: BNC Male Twisted-pair video connector: push-terminal Compatible Video Format: AHD / HD-TVI / HD-CVI / 960H Resolution: 960H / 720P / 1080P / 420+ TV Lines Anti-interference level: >60dB
• Impedance: BNC Male 75 Ohms, UTP cable 100 Ohms Working Temperature: -10 ~ 55 degree Storage Temperature: -20 ~ 70 degree Humidity: 0-95 degre

• Super Extensive Applications:Support all video devices, such as camera, monitor, DVR card and recorder etc.

Product Size

• Product Weight:- 60g
• Product Size:-1pc is 13.7*11.6*3.1 mm

Product Uses

• Video Balun with DC Power and UTP
• HD-CVI/TVI/AHD UTP Passive Video Balun with DC Power Connector
• PASSIVE POWER VIDEO , POWER VIDEO & DATA (AUDIO) BALUN
• Passive RJ45 CCTV Video Balun Transceiver Supply Power
• Compact size and easy installation Built-in transient suppression protection Innovative combination design
• Built in TVS for surge protection, super interface rejection / transient protection / lightning protection / anti-static protection
• Improve the picture definition when connected to DVR or Quad, and reduce noise

USES : CCTV CAMERA ACCESSORIES
